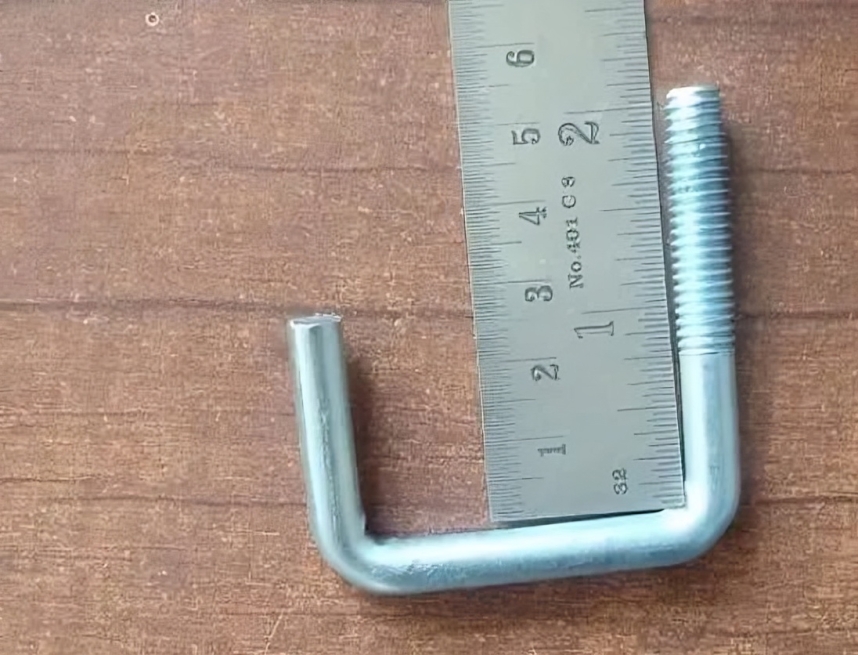

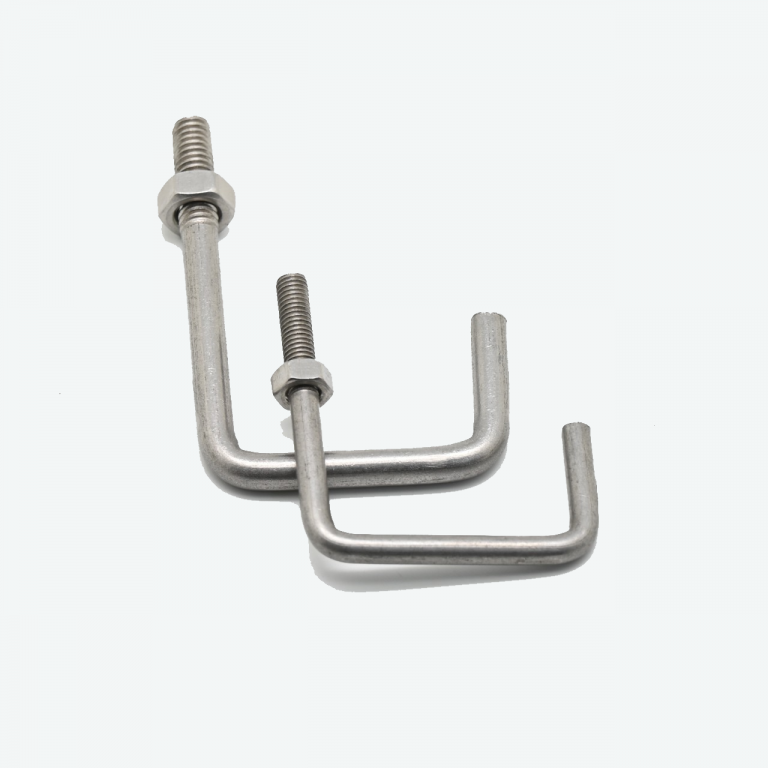

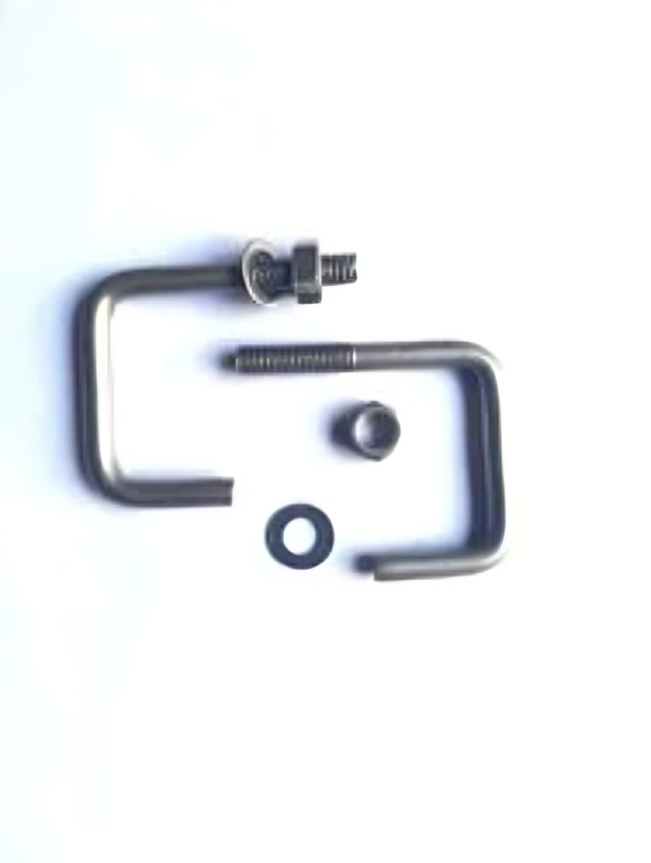

J - BOLT 80*40 WITH FLANGE NUT

Price 23.3 INR/ Piece

Get a Price/Quote

MOQ : 100 Pieces

J - BOLT 80*40 WITH FLANGE NUT Specification

Surface Treatment
HDG

Diameter
M16 (16 mm) Millimeter (mm)

Head Type
Other

Thread Type
Metric Coarse Thread

Thickness
8 mm Millimeter (mm)

Dimension (L*W*H)
: 800 mm * 80 mm Millimeter (mm)

Heat Treatment
Other

Length
800 mm Millimeter (mm)

Standard
IS 1367 / DIN 976

Usage
Solar panel mounting structure foundation anchoring Ground-mounted solar power plant installations RCC and concrete foundation fixing Structural steel framework support Industrial machinery and equipment foundations Transmission pole and utility structure anchoring Construction and infrastructure projects Heavy-duty fastening and load-bearing applications

Size
80 *40 mm

Height
800 mm Millimeter (mm)

Grade
4.6

Product Type
Foundation Anchor J-Bolt with Flange Nut

Weight
1.10 1.30 kg per piece Kilograms (kg)

Use
Secure anchoring of solar mounting structures and steel supports into concrete foundations.

Color
Silver

Width
80 mm Millimeter (mm)

About J - BOLT 80*40 WITH FLANGE NUT

J-Bolt 8040 with Flange Nut is a robust anchoring fastener designed for securing solar mounting structures, steel frameworks, industrial equipment, and construction foundations. The J-shaped anchor end provides excellent grip within concrete, while the flange nut ensures secure fastening and uniform load distribution. Manufactured from high-quality mild steel and protected with hot-dip galvanization, it delivers superior strength, corrosion resistance, and long-term outdoor performance.

Product Specifications

Parameter	Specification
Product Type	Foundation Anchor J-Bolt with Flange Nut
Size	80 40 mm
Material	Mild Steel (MS)
Grade	4.6
Diameter	M16 (16 mm)
Thread Type	Metric Coarse Thread
Length	800 mm
Height	800 mm
Width	80 mm
Thickness	8 mm
Surface Treatment	HDG (Hot Dip Galvanized)
Heat Treatment	Other
Head Type	Other (J-Type Anchor End)
Standard	IS 1367 / DIN 976
Galvanization Standard	IS 4759
Corrosion Resistance	Yes
Weather Resistance	Suitable for Outdoor Use
Color	Silver
Application	Solar Mounting Structures, RCC Foundations, Industrial Supports
Installation Type	Concrete Anchoring
Packaging	As per Requirement

Key Features

Strong J-shaped anchoring design
Supplied with flange nut for secure fastening
Hot-dip galvanized for enhanced corrosion resistance
High load-bearing capacity
Suitable for outdoor and harsh environmental conditions
Durable construction with long service life
Ideal for solar and industrial foundation applications

Applications

Solar panel mounting structure foundations
RCC and concrete anchoring works
Industrial equipment foundations
Structural steel framework installations
Transmission and utility structures
Infrastructure and construction projects

Technical Details

Usage: Foundation anchoring and structural fastening
Dimensions: 800 80 8 mm (Length Width Thickness)
Thread Diameter: M16
Thread Type: Metric Coarse Thread
Surface Finish: HDG (Hot Dip Galvanized)
Approximate Weight: 1.00 1.30 kg per piece (depending on thread length and nut specification)
