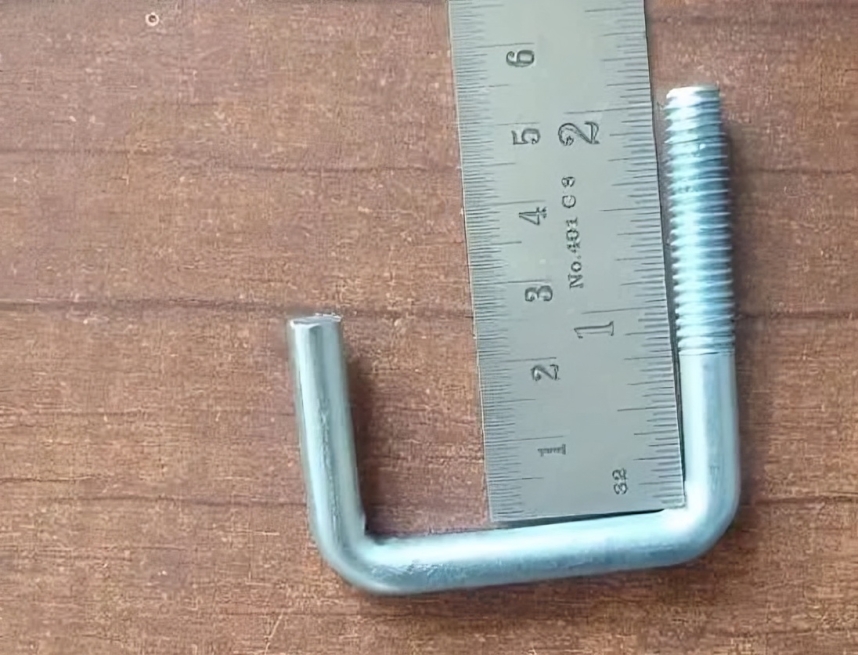

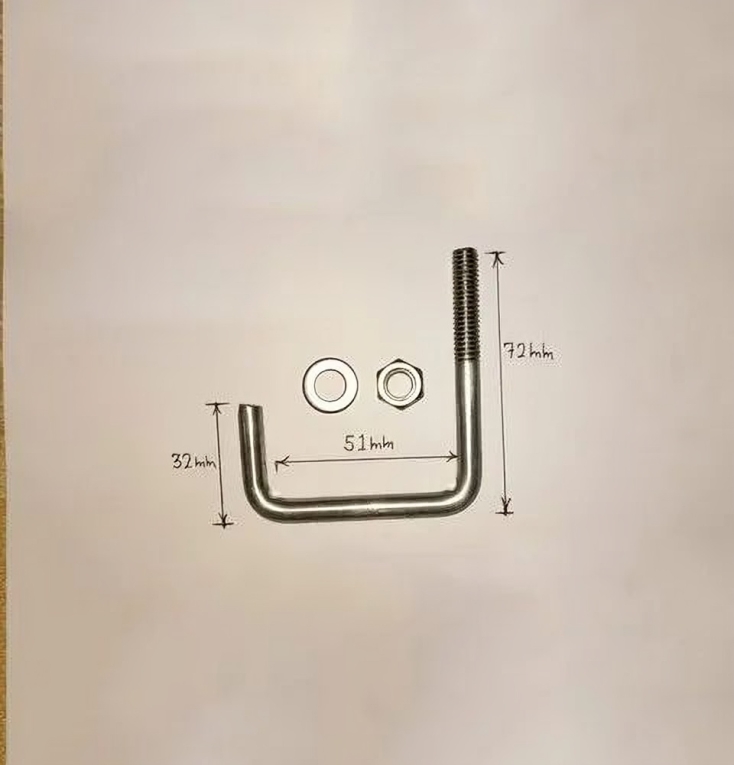

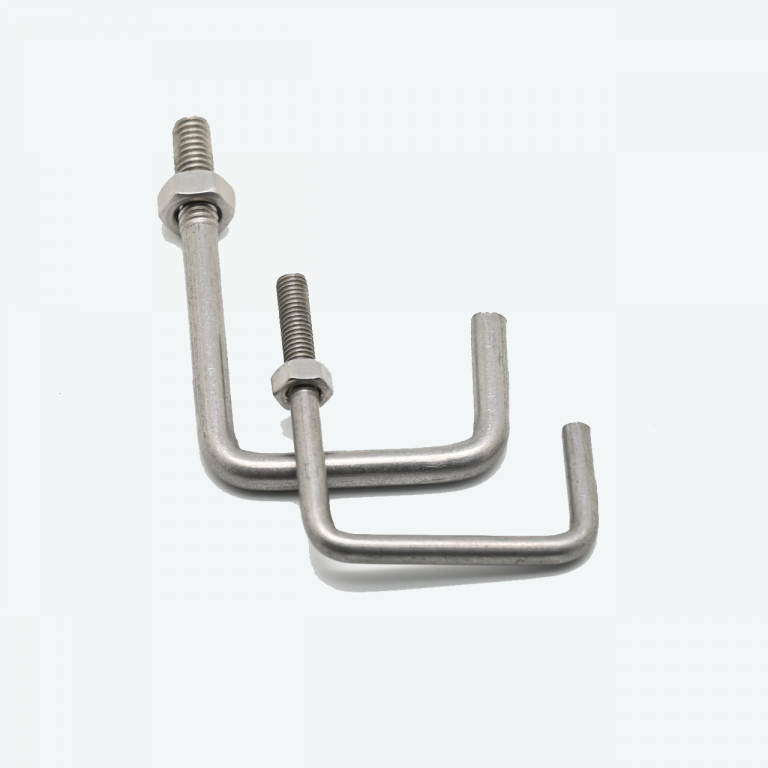

Send InquiryJ - BOLT 60*40 WITH FLANGE NUT
Price 22.0 INR/ Piece
MOQ : 100 Pieces
J - BOLT 60*40 WITH FLANGE NUT Specification
- Thickness
- 8 mm Millimeter (mm)
- Dimension (L*W*H)
- 600 mm 60 mm Millimeter (mm)
- Thread Type
- Metric Coarse Thread
- Head Type
- Other
- Diameter
- M16 Millimeter (mm)
- Heat Treatment
- Other
- Length
- 600 mm Millimeter (mm)
- Surface Treatment
- HDG
- Standard
- IS 1367 / DIN 976
- Usage
- Secure anchoring of solar mounting structures and steel frameworks into concrete foundations.
- Size
- 60 40 mm
- Height
- 600 mm Millimeter (mm)
- Product Type
- Foundation Anchor J-Bolt with Flange Nut
- Grade
- 4.6
- Weight
- 0.70 1.00 kg per piece Kilograms (kg)
- Use
- Solar panel mounting structure foundations RCC and concrete anchoring applications Ground-mounted solar power projects
- Color
- Silver
- Width
- 60 mm Millimeter (mm)
About J - BOLT 60*40 WITH FLANGE NUT
J-Bolt 6040 with Flange Nut is a heavy-duty foundation anchoring fastener designed for solar mounting structures, industrial equipment foundations, transmission structures, and construction applications. The J-shaped end provides strong anchorage in concrete, while the flange nut ensures secure fastening and improved load distribution. Manufactured from high-quality mild steel and protected with hot-dip galvanization, it offers excellent strength, corrosion resistance, and long service life in outdoor environments.
Product Specifications
| Parameter | Specification |
|---|---|
| Product Type | Foundation Anchor J-Bolt with Flange Nut |
| Size | 60 40 mm |
| Material | Mild Steel (MS) |
| Grade | 4.6 |
| Diameter | M16 (16 mm) |
| Thread Type | Metric Coarse Thread |
| Length | 600 mm |
| Height | 600 mm |
| Width | 60 mm |
| Thickness | 8 mm |
| Surface Treatment | HDG (Hot Dip Galvanized) |
| Heat Treatment | Other |
| Head Type | Other (J-Type Anchor End) |
| Standard | IS 1367 / DIN 976 |
| Galvanization Standard | IS 4759 |
| Corrosion Resistance | Yes |
| Weather Resistance | Suitable for Outdoor Use |
| Color | Silver |
| Application | Solar Mounting Structures, RCC Foundations, Industrial Supports |
| Installation Type | Concrete Anchoring |
| Packaging | As per Requirement |
Key Features
- Strong J-shaped anchoring design for concrete foundations
- Supplied with flange nut for secure fastening
- Hot-dip galvanized for superior corrosion protection
- High load-bearing capacity and structural stability
- Suitable for solar power plant mounting structures
- Excellent resistance to weather and environmental conditions
- Long service life with low maintenance requirements
Applications
- Solar panel mounting structure foundations
- RCC and concrete anchoring works
- Industrial equipment foundations
- Structural steel supports
- Transmission and utility structures
Dimensions
- Length: 600 mm
- Width: 60 mm
- Thickness: 8 mm
- Thread Diameter: M16
- Height: 600 mm
Approximate Weight
- 0.70 1.00 kg per piece (depending on thread length and nut specification)
