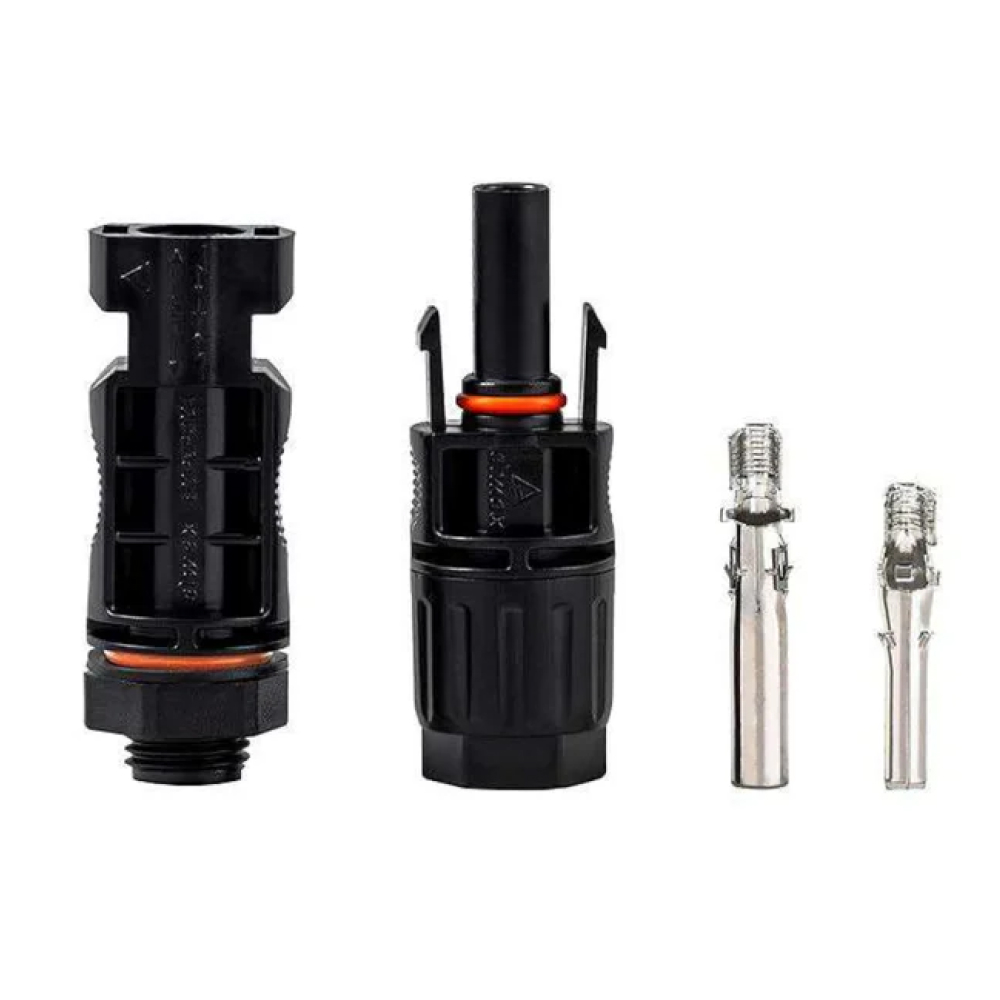

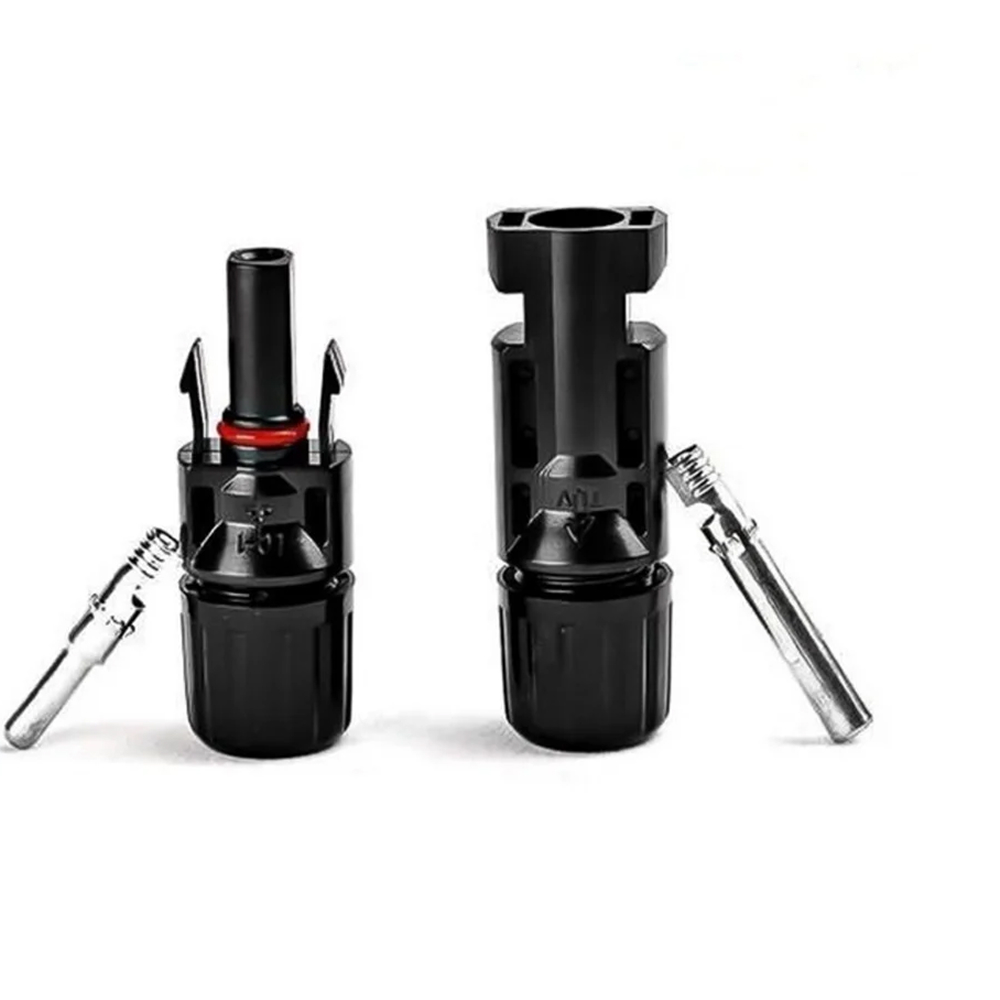

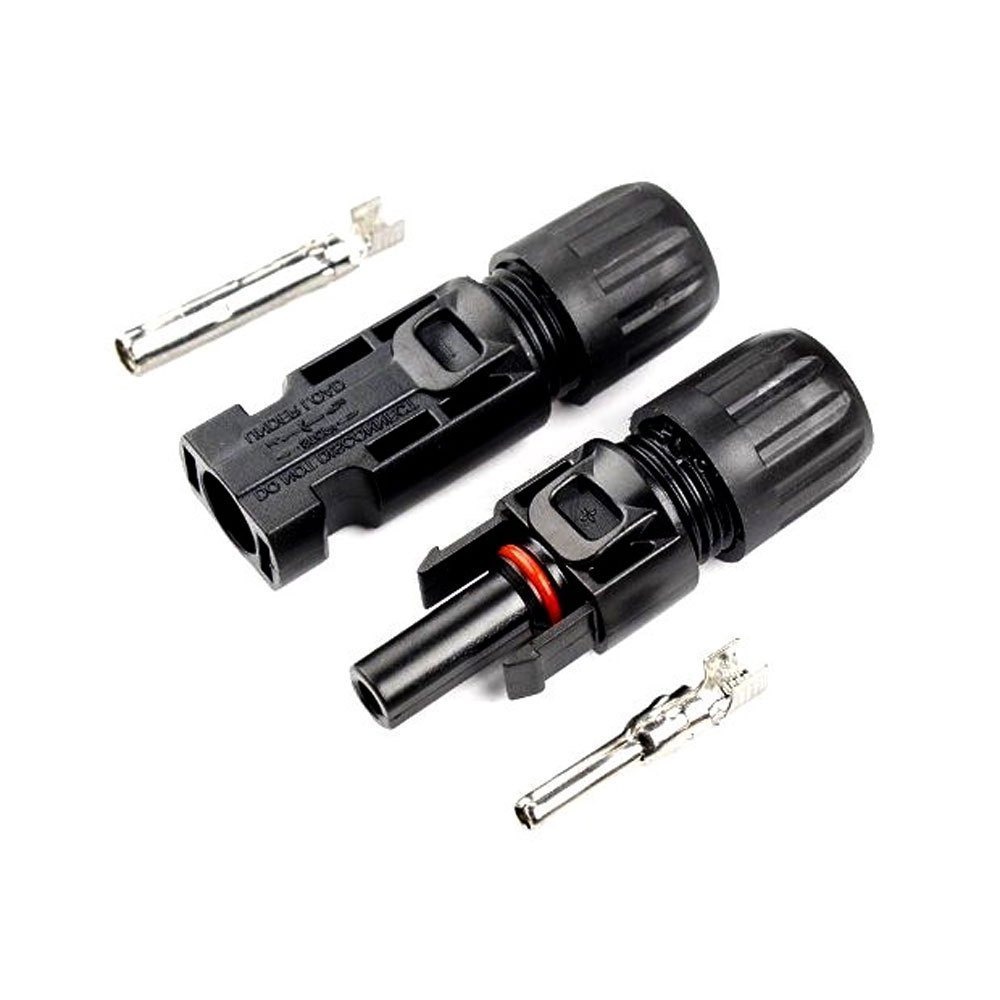

MC4 Connector

• Application
• Other

• Cable Type
• Compatible with 2.5mm2, 4mm2, 6mm2 PV cable

• Color
• Black

• Conductor Material
• Other, Copper, tin-plated

• Conductor Shape
• Round

• Conductor Type
• Other, Single conductor (male/female)

• Connector Color
• Black

• Core Material
• Copper

• Core Number
• 1

• Diameter
• Suitable for cable outer diameter: 4mm-6mm

• Dielectiric Strength
• Above 6kV

• Dimension (L*W*H)
• Approx. 61mm x 18mm x 17mm

• Features
• UV resistant, waterproof, dustproof, corrosion resistant, quick and reliable connection, simple plug-and-play design

• Install Type
• On-site plug-and-play installation

• Insulation
• PPO

• Insulation Material
• Other

• Jacket Color
• Black

• Jacket Material
• Other, PPO (Polyphenylene Oxide)

• Length
• Standard 3-5 cm (without cable)

• Locking Type
• Self-locking snap fit

• Material
• PPO with copper contacts

• Number of Conductor
• 1

• Operating Temperature
• -40C to +90C

• Product Type
• MC4 Solar Connector

• Rated Temperature
• -40C to +90C

• Shield Material
• None (Non-shielded)

• Size
• Standard MC4 size

• Storage Temperature
• -40C to +85C

• Tensile Strength
• >50N (connector locking)

• Usage & Applications
• Connecting solar panels, photovoltaic arrays

• Voltage
• Other, Rated Voltage up to 1000V DC

• Weight
• Approx. 26g (per pair)

• Application
• Power Station

• Cable Type
• Solar PV Cable Connector

• Color
• Black

• Conductor
• DC

• Conductor Material
• Copper

• Conductor Shape
• Round

• Conductor Type
• Solid

• Connector Color
• Black

• Core Material
• Copper

• Core Number
• 1

• Features
• High-quality tinned copper contacts for excellent conductivity.

• Install Type
• Plug-In / Crimp Type

• Insulation Material
• Other

• Jacket Color
• Black

• Jacket Material
• Other

• Length
• 65-70 Millimeter (mm)

• Material
• Tinned Copper,Housing/Body PPO (Polyphenylene Oxide)

• Number of Conductor
• 1

• Operating Temperature
• -40 C to +85 C Celsius (oC)

• Power Rating
• 30 kW (Approx.)

• Product Type
• Solar PV Connector

• Rated Current
• 30 Amperes Ampere (amp)

• Rated Temperature
• 105 C (Maximum Contact Temperature) Celsius (oC)

• Rated Voltage
• 1000 V DC / 1500 V DC Volt (V)

• Size
• MC4 (4 mm Contact)

• Storage Temperature
• -40 C to +90 C Celsius (oC)

• Tensile Strength
• 50 MPa (Approx.) Megapascals (MPa )

• Usage & Applications
• The Dollex MC4 Connector is used to create secure, weatherproof, and low-resistance electrical connections between solar panels and solar DC cables in photovoltaic (PV) systems. It ensures safe power transmission and easy installation of solar arrays.

• Application
• Power Station

• Cable Type
• Solar PV Cable Connector

• Color
• Black

• Conductor
• Tinned Copper

• Conductor Material
• Copper

• Conductor Shape
• Round

• Conductor Type
• Solid

• Connector Color
• Black

• Core Material
• Copper

• Core Number
• 1

• Features
• High-quality tinned copper contacts for excellent conductivity.

• Impedance
• 0.5 m Microampere (A)

• Install Type
• Plug-In / Crimp Type

• Insulation Material
• Other

• Jacket Color
• Black

• Jacket Material
• Other

• Material
• Tinned Copper,Housing/Body PPO (Polyphenylene Oxide)

• Number of Conductor
• 1

• Operating Temperature
• -40 C to +85 C Celsius (oC)

• Phase
• Solar PV Cable Connector

• Power Rating
• 30 kW (Approx.)

• Product Type
• Solar PV Connector

• Rated Current
• 30 Amperes Ampere (amp)

• Rated Temperature
• 105 C (Maximum Contact Temperature) Celsius (oC)

• Rated Voltage
• 1000 V DC / 1500 V DC Volt (V)

• Size
• MC4 (4 mm Contact)

• Storage Temperature
• -40 C to +90 C Celsius (oC)

• Tensile Strength
• 50 MPa (Approx.) Megapascals (MPa )

• Usage & Applications
• The Dollex MC4 Connector is used to create secure, weatherproof, and low-resistance electrical connections between solar panels and solar DC cables in photovoltaic (PV) systems. It ensures safe power transmission and easy installation of solar arrays.
